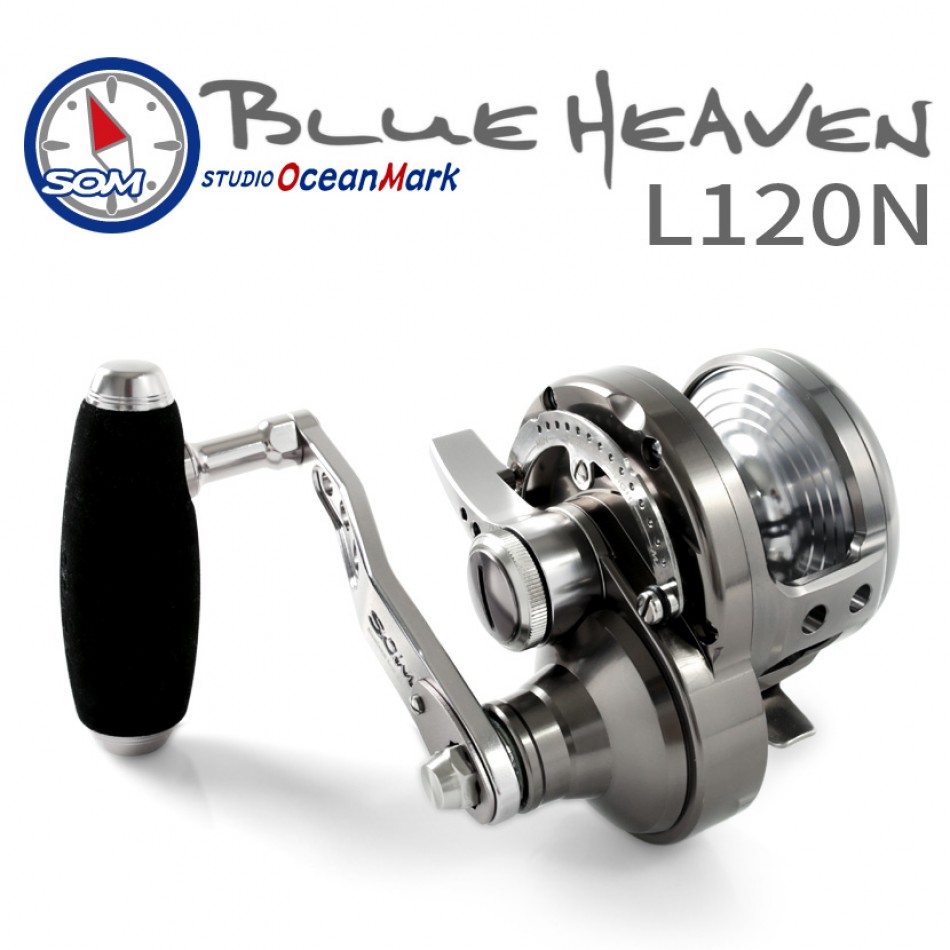

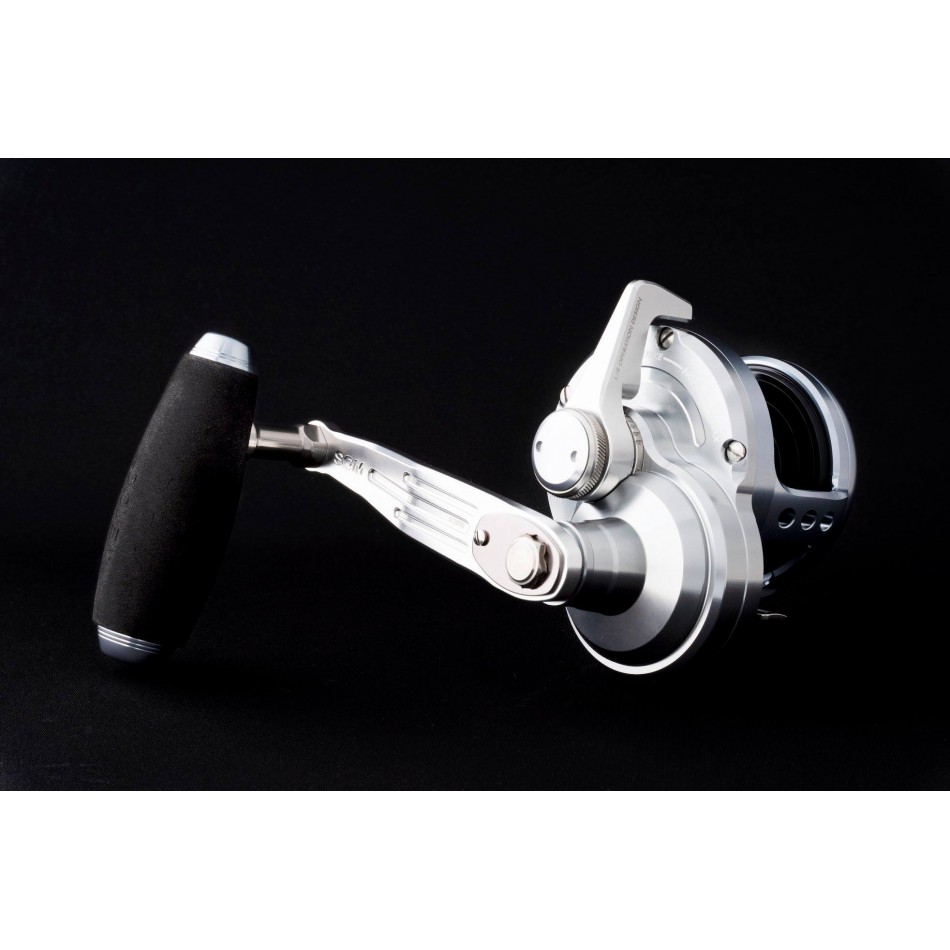

SOM BLUE HEAVEN   80

Design

● L Shape Drag Lever

The S2T lever which the jigging specification lever drag model of the world followed followed. Excellent shape that enables lever operation from the paring side even during straight pumping. Moreover, it fulfills the design evolution corresponding to this combination with the large caliber model / long arm.

● Spool replacement

Every time a representative feature model proposed by SOM is superimposed from the original BHL 120 , spool replacement easiness is improved and spool replacement can be easily done even on a shaking ship

Lead design (utility model)

By making the edge part of the gearbox irregular, we made it possible to sense the lever position sensibly with fingers without looking at the reel.

● Super spool free (patent registered)

When free, two small bearing bearings are supported, and when rolling, a large diameter bearing slides to support the bearing.
With its lightweight spool and synergistic effect it demonstrates phenomenal spool-free performance.
Especially in the middle deep sea it can be said that you can put jigs into the bite zone earlier "Capable of fishing".

Asymmetrical design (design registered)

Mechanically packed gearbox side bigger on the side of the paring side! SOM is the world's first jigging designed design.

Toughness

 Large caliber mountain module gear

Drive gear is high strength high strength brass material same as BHL 120 and designed with the largest class diameter.
The mountain module specification comparable to the trolling reel is trained with Nagano quality.
It is the heart that produces a powerful winding force that you can experience from the moment you roll it.

"Forgebox" and "Frame" of aluminum forging machine cut

Forging process heats aluminum material, taps at high pressure, and increases strength.
The gearbox that holds a strong heart part and the Fumum for smoothly transmitting the power input from the handle from the gear to the spool by knocking out the aluminum material by forging manufacturing method and cutting it precisely by the machining center machine.

"Gear Box"

The cylinder part that houses the main shaft that serves as a bridge between the handle arm and the drive gear is surely conveying the force vertically by making it thick enough and gradually shaped. Simulation analysis of force transmission ensures the necessary thickness up to the joint of the frame, and the part where unnecessary strength is required is eliminated.

"flame"

The bridge design of the new idea adopted from BHL 30 is troublesome in processing and becomes a large factor of cost increase because it increases the amount of scraping, but since sufficient wall thickness can be secured for the whole bridge, distortion deflection twist is felt at all There is no hard feeling of winding up.

    ● High Strength One Way Bearing

One-way ball bearings prevent the reverse rotation of the handle.
We ordered custom-made shell type one-way bearings manufactured by INNA, the world's largest, with a rust prevention specification, and as with BHL 120, we pressed two of them into an extruded case made of ultra duralumin, which is the strongest specification.

  ● Handle arm

In order to prevent bending of the arm due to longing, extrusion forging of the new 60 series aluminum alloy and abolishing the round hole created the strongest arm.
In the middle deep sea it is a convertible design of 98 mm which is easy to take 110 mm and one pitch pitch rhythm which demonstrates overwhelming power.
It is assembled at 110 mm specification at shipment.

 ● Angular contact ball bearing

The structural weakness of the lever drag reel is that when the drag force is raised the steering wheel rotation becomes heavy.
This is because when a drag force is raised, force is applied to spool → drag disc → pinion gear → bearing, and a load is applied in the → direction of the figure.
Since general bearings are structured so that they can only receive the load in the direction of rotation, the area of ​​the outer ring / inner ring where the ball contacts is small, pressure can not be sufficiently received, and friction and wear increase.
Angular contact bearings are angled to the inner and outer rings and designed to withstand the rotational and axial loads.

Drag

● Semi-water proof drag

Since the lever drag system has a drag washer on the side of the spool, when drowning from the gap between the spool and the frame, the drag performance deteriorates markedly.
With the lever drag system, the spool-free performance is not degraded, and the system with waterproof performance is a jigging idea of ​​only BHL.

● G40 Cork Drag Washer

If smooth initial motion, you can obtain sufficient performance with carbon washer.
However, in the case of straight pumping of SPJ that has been emerging, since the rod curve is loose, pressure due to the guide resistance can not be applied, smoothness becomes enemy with the carbon washer,
giving the fish an initiative with inadvertent sliding of the drag .
Therefore, we focused on the weight of the initial movement of the cork washer and the drag force, and the weakness of the surface which was the weak point of the cork washer and the weakness of the bending strength were measured by a custom-made compressor to realize the surface smoothness and strength like G40 cork We developed a washer.

● Kilo set drag

Drag lever 1 click was set to about 1 kg according to the feeling of Japanese people.
Based on the strike position minus 3 kg to the MIN position, plus 3 kg to the FIGHT position, further from there the MAX position will change the drag force to plus 4 kg.
Please set the strike position according to the line strength to be used.

Easy Maintenance

● Spool / Drag Washer / Change One Way Bearing

Simply remove the four screws on the gearbox side to separate the frame and the gearbox.
It is easy to lubricate the grease-up bearing to the drag washer by easily removing the spool replacement and turning the waterproof cover.
One-way bearings and angular contact ball bearings, which are heavily worn out, can be removed very easily, and complete disassembly is also about 10 minutes if maintenance is possible.

■ The drag washer ￫AC000
■ to the rotary shaft / bearing ￫CC000
■ the gear portion ￫CG001
　※ spool bearing rotation and paint the grease to become the cause of heavy.
　　Please apply oil for commercial reel bearing.
